Scenarios and Use Cases: Live Media Distribution​

In the reference scenario, a content provider streams live media (for example a radio or TV service) over the top (OTT) to a large population of consumer devices, with a content delivery network (CDN) at the source and the mobile network carrying the content to each device. When a consumer sees a degraded experience, the cause could lie in the CDN, the client application, the radio link or somewhere inside the operator's network. The purpose of this scenario is to identify who can observe which part of the delivery chain, so that a Network API can help share that information and close the visibility gap. The actors and their vantage points are described below.

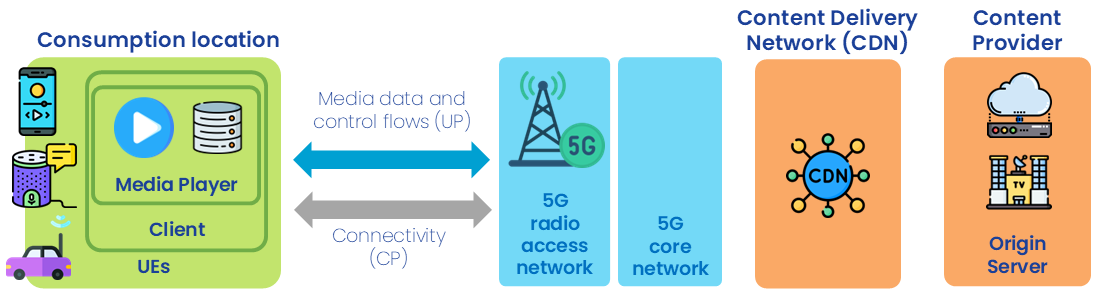

High-level distribution chain from the content provider and CDN, through the network operator, to the consumer client application, showing which actor can observe each segment.
High-level Live Media Distribution chain and the actors involved.

Actors​

The actors involved are:

  • Content Provider, distributes live media content to consumers, typically "over the top" (OTT) via a CDN. The content provider wants to understand how well its content is being delivered and to diagnose poor performance. It has visibility of the two ends of the distribution chain: the source (the CDN in this context) and the client application running on the consumer device.
  • Consumer/End User, accesses the live media content through a client application (e.g. on a smartphone or other connected device). The client application can log relevant performance data, such as the time taken to deliver each media segment (time to last byte, TTLB) for MPEG-DASH services.
  • CDN Operator, hosts and serves the media content from the source end of the distribution chain. CDN logs can often be inspected to rule the CDN in or out as the cause of poor performance.
  • Network Operator, provides the network carrying the content between the CDN and the consumer device. The operator has far greater visibility of what happens inside its own network but, for third party (OTT) services where it has no access to the client application, typically lacks visibility of the full distribution chain. A set of network capabilities can be exposed through APIs (referred to as Network APIs in the following).
  • Aggregator (optional), provides access to the network capabilities of different Network Operators. See GSMA Open Gateway and GSMA Operator Platform as examples.

Who can observe which part of the chain​

The purpose of the scenario is to make the observability boundaries explicit, because they are what a Network API would have to bridge. The table below maps each link of the distribution chain to the actor (or actors) that can see it.

Link in the chainContent providerNetwork operatorHow
CDN / origin (source)YesNoCDN logs (segment requests served, cache hits, errors).
Operator core and transportNo ("The Cloud")YesOperator's own network monitoring, for its own traffic.
Radio link (RAN)PartialYesProvider sees client-reported radio indicators (cell ID, signal strength, signal quality); operator sees the RAN directly.
Client application (device)YesNo (for third-party OTT)In-app instrumentation: per-segment time to last byte (TTLB), rebuffering events, errors.

The gap is the diagonal: the content provider cannot see the operator's core and transport (only their aggregate effect), and the operator cannot see the client app of a third-party service. A failure such as uplink interference that prevents a segment request from reaching the network falls into both blind spots at once, because the provider only observes a slow or failed segment (a high or infinite TTLB) while the operator observes no request at all. Sharing app-side data (TTLB, radio indicators, error events) with the operator, and network-side context back to the provider, is what a Network API such as Connectivity Insights would enable.

Diagnosis logic​

Given the observability boundaries, the content provider's fault-isolation follows a process of elimination:

  1. Rule the CDN in or out by inspecting CDN logs. If the CDN served the segment promptly, the source is not the cause.
  2. Rule out insufficient radio coverage using the client-reported radio indicators. Weak signal explains many degradations without any network fault.
  3. What remains is attributed to "the network", which the provider cannot see. This is precisely the residual that a data-sharing Network API is meant to illuminate, by letting the operator confirm whether it observed the traffic and how it treated it.

From scenario to APIs​

Two needs follow from the scenario: assuring quality of service for reliable segment delivery to a large device population, and sharing monitoring information to close the visibility gap. The Workflows page turns these into phased procedures and requirements (including the region-specific geofencing need); the Using CAMARA APIs page maps them onto candidate CAMARA APIs (Quality on Demand and QoS Profiles for QoS; Application Profiles with Connectivity Insights and its subscription variant for monitoring).
