5G Multicast Broadcast Services (MBS)

MBS support in the 5GC (Docker deployment)

This tutorial explains how to run the MBS-capable 5G Core (5GC) as a set of Docker containers, so you can bring up the whole MBS core network with a single Docker Compose deployment instead of building each Network Function by hand.

Two Docker Compose deployments of the MBS capable 5G Core are available:

rt-mbs-examples Docker Compose recipes for the MBS-capable 5G Core, plus the Python test suite used later in this tutorial.
  • The internal deployment connects all the developed Network Functions for MBS with one srsRAN gNB and one srsRAN UE running using the ZeroMQ driver
  • The external deployment deploys only the developed Network Functions for MBS waiting for an external gNB connection

Which should I use? Choose the internal deployment for a self-contained first run: it includes a gNB and UE, so you can bring up everything on one machine with no extra hardware. Choose the external deployment when you want to connect your own (physical or separate) gNB to the MBS core over the N2 and N3mb interfaces.

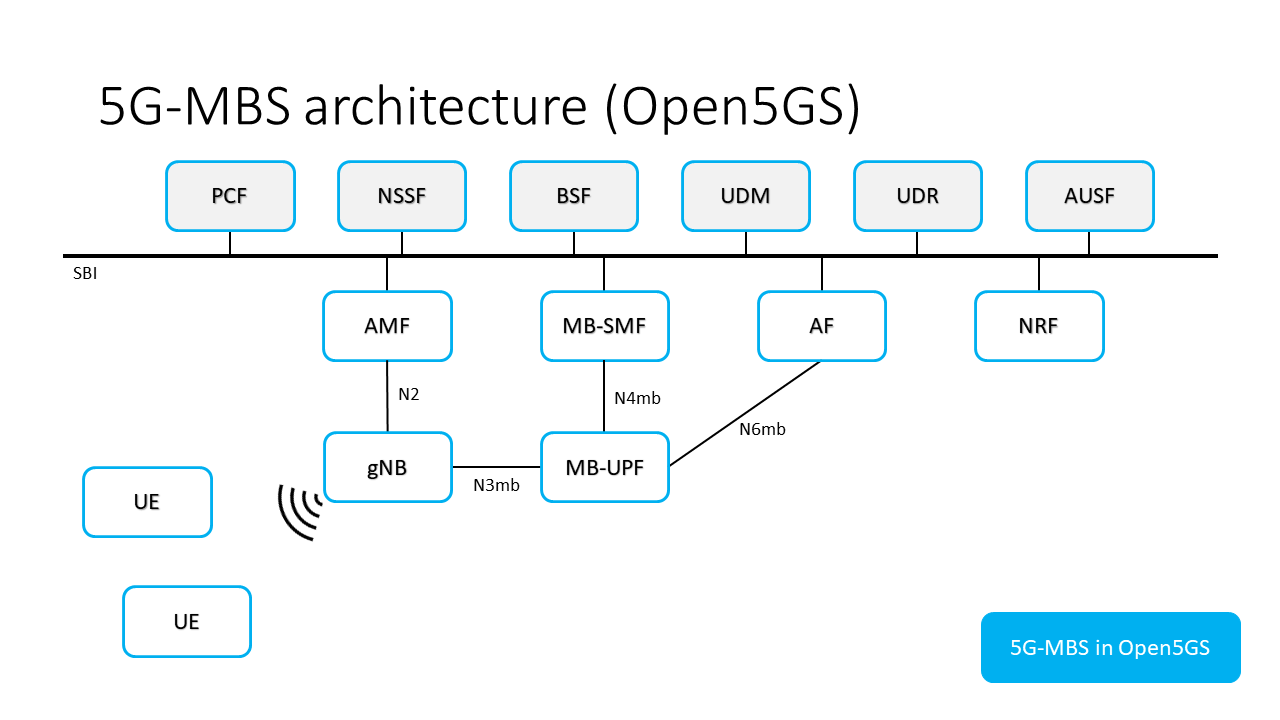

Architecture using Open5GS​

5G-MBS architecture using Open5GS

note

All the procedures related to the AMF, SMF and UPF of Open5GS work as expected when using the 5G-MAG components. As an example it is possible to create a standard PDU Session with a gNB and a UE while using the MBS capable 5G Core.

The following host ports are exposed by the deployments:

PortExposed inPurpose
TCP 27017internal and externalAdd subscribers to the MongoDB database
SCTP 38412externalFrom the AMF for the NGAP N2 interface, the control-plane connection with the external gNB
UDP 2152externalFrom the MB-UPF for the GTPU N3mb interface, the data-plane connection with the external gNB
note

Modify the .env file present on this repository to change the values being deployed on docker-compose.yaml. Add your host's IP address to the DOCKER_HOST_IP variable in the .env file for the MB-UPF to be reachable by external gNBs.

Mapping of container names and the architecture​

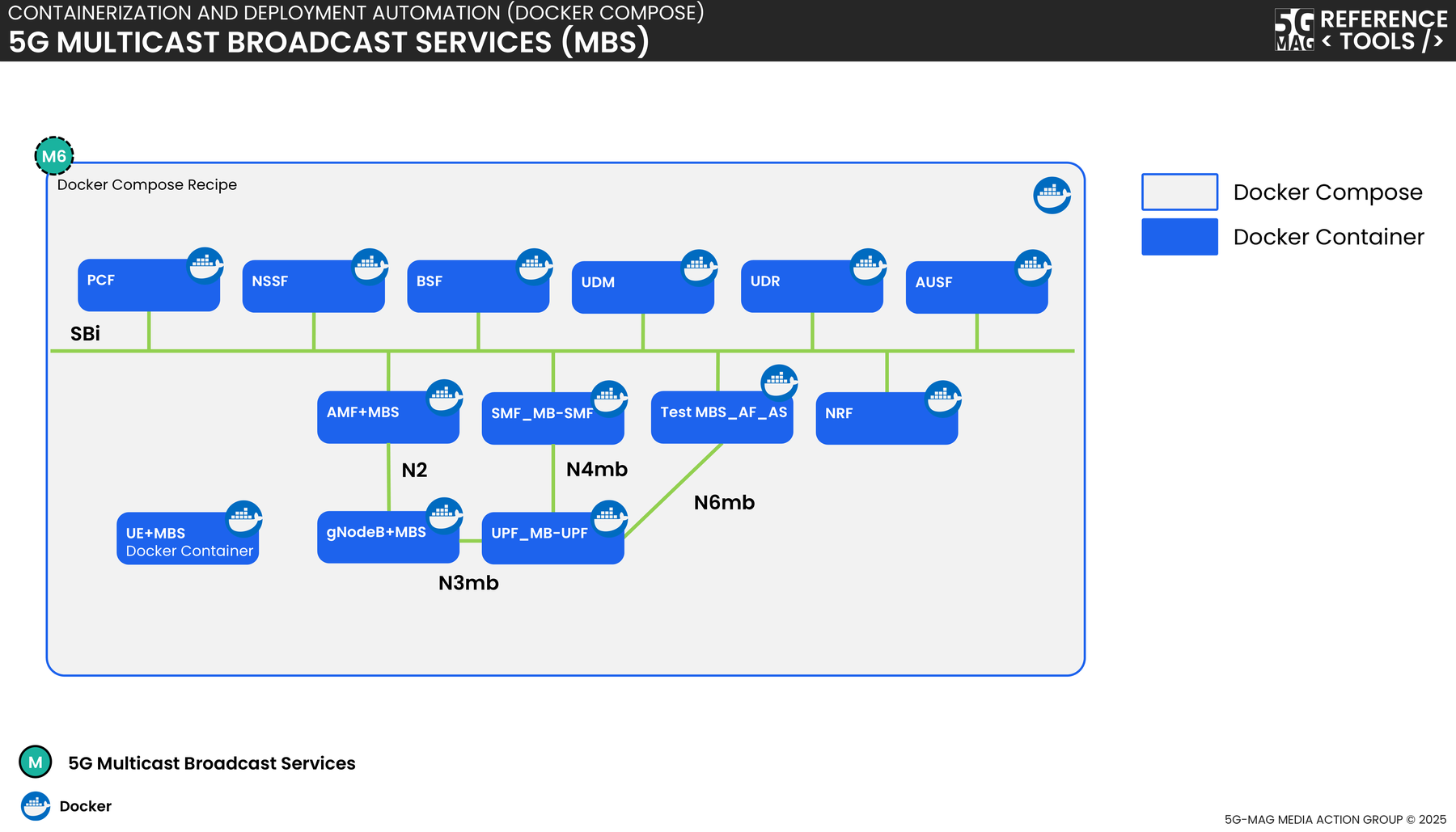

The following image shows the relationship between the Architecture using Open5GS image and the names of the containers.

5G-MBS container name mapping

Testing​

This section explains how to use the Python tests present on the test directory in the rt-mbs-examples repository.

The Python modules requirements are preinstalled on the AF/AS container image. This container mounts the test directory as read-only to be able to run the tests.

To run the tests, execute an interactive session with the AF/AS container and navigate to the test directory:

docker exec -it test_mbs_af_as bash

# inside the AF/AS container
cd test

# to run the tests
python3 tests.py

The test directory contains the following subdirectories:

  • MB_SMF the developed tests regarding the MB-SMF Network Function
  • utils a Python package containing some common utils for the tests
  • support some support files for the tests like JSON files for the requests and JSON schemas to validate them

Using the config.toml file some parameters can be configured:

  • the log_level for the tests can be adjusted. The values supported are: DEBUG, INFO, WARNING, ERROR, CRITICAL
  • some endpoint parameters like the MB-SMF address, the protocol (HTTP or HTTPS) and the port being used

The file tests.py contains the main logic for the tests. In this file the test suites are defined and run by the unittest testing framework.

Detailed Instructions​

Inspect all the traffic being sent in the network​

You can use tcpdump/Wireshark to sniff all the messages being sent between the Network Functions by inspecting the br-5g-mag network bridge. This bridge is created by the Docker Compose network and is used to connect all the Network Functions.

$ tcpdump -i br-5g-mag

Connect to the AF/AS container to start sending requests to the Network Functions​

The container named test_mbs_af_as is not a real Application Function or Application Server; it is a helper container used to send curl requests to the Open5GS APIs, standing in for an MBS Application Provider (AF/AS).

# Connect to the AF/AS container
docker exec -it test_mbs_af_as bash

Use curl inside the container to send requests to the other Network Functions:

# Inside the AF/AS container, example of the AF/AS sending the MB-SMF the TMGI allocate request
curl --http2-prior-knowledge \
  --request POST \
  --header "Content-Type: application/json" \
  --data '{ "tmgiNumber": 1 }' \
  smf-mb-smf.5g-mag.org:80/nmbsmf-tmgi/v1/tmgi

Configure the MB-UPF multicast​

Apart from editing the .env for the MB-UPF to be reachable by external gNBs, the MB-UPF needs extra configuration. To be able to detect the multicast traffic being sent and forward it to the lower layer source specific multicast (LLSSM) address, the MB-UPF needs to update the multicast forwarding cache (MFC) in the linux kernel.

For this purpose, the smcroute tool is installed on the MB-UPF container. Through the smcroutectl command, the MFC can be updated to the desired values. Currently this is done manually but other ways to update the MFC are being studied.

# Execute this command inside the MB-UPF container
smcroutectl add eth0 <n6mb_ip_multicast_destination_address> ogstun

After this, and after creating the MBS Session, the project can be tested by using the AF/AS to send multicast traffic to the MB-UPF and inspecting the MB-UPF output:

# Execute this command inside the AF/AS container
sendip -p ipv4 -is <af_as_container_ip> -id <n6mb_ip_multicast_destination_address> <mb_upf_container_ip>
You now have the MBS-capable 5G Core running as Docker containers. The MBS Session is created and multicast traffic is flowing from the AF/AS through the MB-UPF, visible with `smcroutectl` and `tcpdump`.
