Media delivery over 5G Broadcast

It is built on LTE (Long Term Evolution, the 4G radio standard) and standardised by 3GPP, using the evolved Multimedia Broadcast Multicast Service (eMBMS) and its further-enhanced variant Further evolved Multimedia Broadcast Multicast Service (FeMBMS), also called LTE-based 5G Broadcast. This project provides the reference transmitter and receiver so anyone can test a complete broadcast chain, covering end-to-end 5G Broadcast systems for TV and radio distribution over dedicated broadcast carriers, without a return channel or SIM requirement on the receiver side. The project also covers hybrid broadcast/broadband delivery and integration with DVB-I service discovery. For the deployment configurations and full feature-support detail, see Implementation status; to see one assembled scenario already running, see the Tutorials.

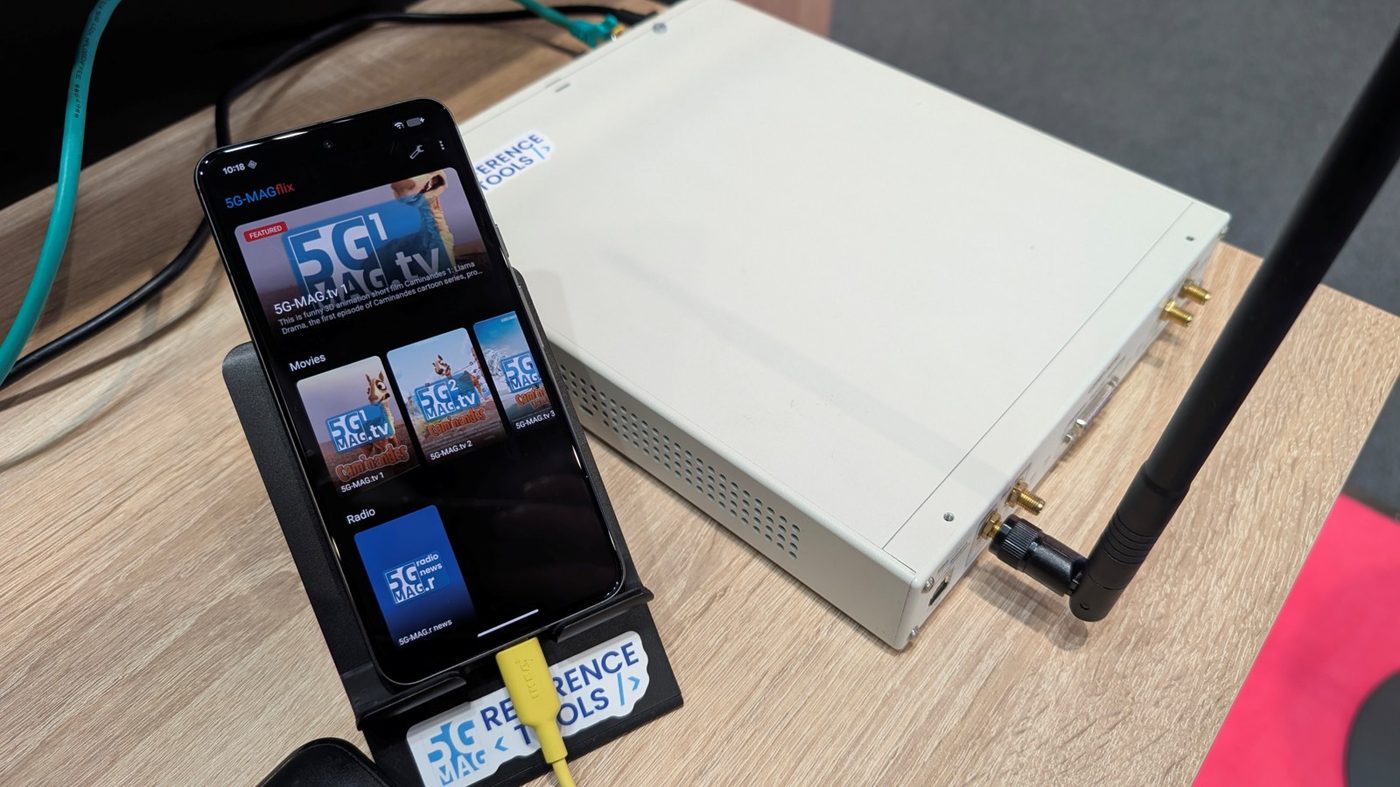

5G Broadcast Reference Tools transmitter hardware, with a phone running the 5G-MAGflix demo app The 5G Broadcast Reference Tools transmitter, with the "5G-MAGflix" demo app receiving a live broadcast stream.

Contributors & How to Contribute​

What's Built​

LTE-based 5G Broadcast
Reference architecture for the 5G Broadcast System, with Reference ToolsBased on ETSI TS 103 720 V1.2.1, figure 5.2.1-1

The Implementation status page covers the radio features of the transmitter and modem. Parts without a repository are not provided by the Reference Tools. rt-mbms-tx-for-qrd-and-crd is a second eNodeB-based transmitter and is not drawn separately. Click the figure to enlarge it.

Repositories & Releases​

Early Access Early Access: available to members first

5G Broadcast Application Providerrt-mbms-application-providerEarly Access
no release yet
5G Broadcast Transmitterrt-mbms-tx
v1.0.02023-06-21 · 177w ago
5G Broadcast Transmitter for QRD and CRDrt-mbms-tx-for-qrd-and-crd
rt-mbms-tx-for-qrd-and-crd-1.0.02024-09-05 · 114w ago
Broadcast-Multicast Service Center (BM-SC)rt-mbms-bmscEarly Access
no release yet
MBMS Android Middlewarert-mbms-mw-android
rt-mbms-mw-android-1.0.02024-09-05 · 114w ago
MBMS Clientrt-mbms-clientEarly Access
no release yet
MBMS Gatewayrt-mbms-gwEarly Access
no release yet
MBMS Middlewarert-mbms-mw
no release yet
MBMS Modemrt-mbms-modem
v1.2.12022-06-30 · 228w ago
MBMS Tools and Examplesrt-mbms-examples
rt-mbms-examples-1.1.02024-11-05 · 105w ago
MBMS Web User Interfacert-wui
no release yet
MBMS-Aware Applicationrt-mbms-applicationEarly Access
no release yet

Also used by Content Delivery Protocols and Tools

FLUTE Protocol and Profilesrt-libflute
rt-libflute-0.12.42026-09-01 · 10w ago

Standards implemented​

ETSITS 103 720
3GPP3GPP
IETFRFC 3926 (FLUTE)

ETSI TS 103 720 (5G Broadcast System for linear TV and radio services; LTE-based 5G terrestrial broadcast system), 3GPP TR 36.976 (Overall description of LTE-based 5G broadcast), TS 26.346 (Multimedia Broadcast/Multicast Service (MBMS); Protocols and codecs), TS 26.347 (Multimedia Broadcast/Multicast Service (MBMS); Application Programming Interface and URL), and IETF RFC 3926 (FLUTE version 1, the version 3GPP mandates and the one rt-libflute implements).

See Media delivery over 5G Broadcast: Specification list for version history and 5G-MAG's own standards contributions.
